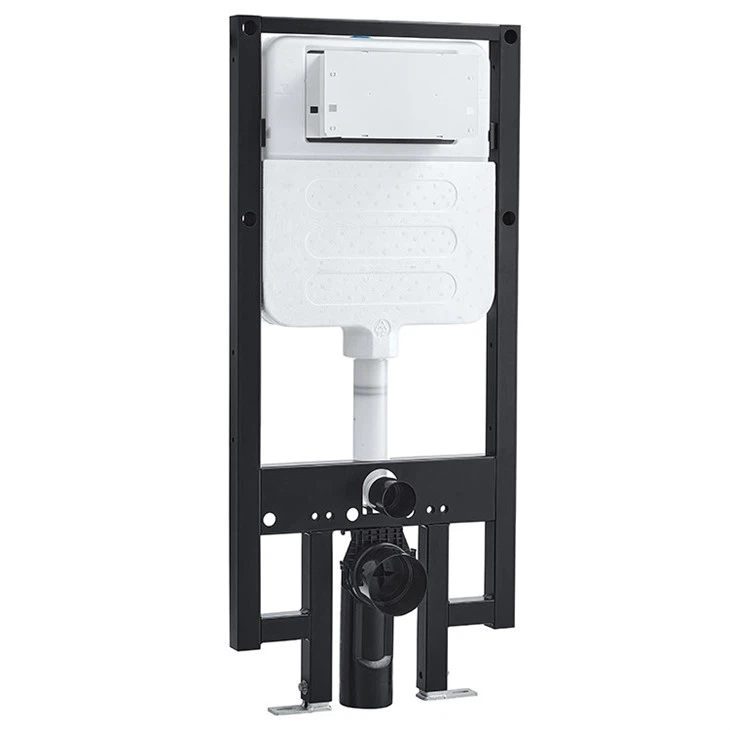

Concealed Cistern Mounting Frame
A concealed toilet cistern frame is an innovative and modern way of installing a toilet in a bathroom.
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
Frame • Anti-corrosion treatment • Load capacity: 400kg
Cistern • HDPE material • One-piece blow molded

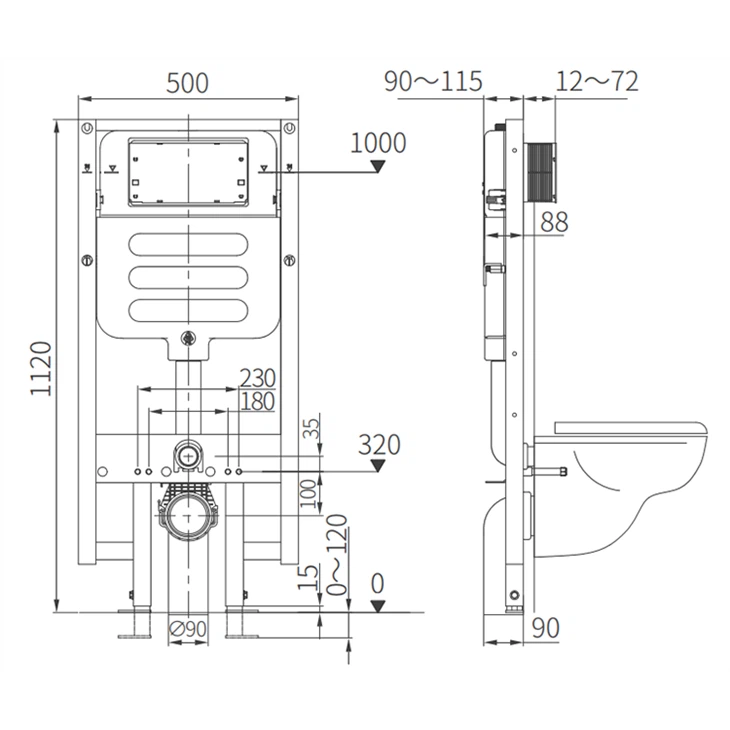

Specifications
| Item NO.: | BW336-F03 | |
| Size: | Height 1120mm; Thickness of cistern 88mm | |
| Application: | For the wall-hung toilet, a faster distance of 180/230mm | |
| Adjustable Dual Flush Valve: | Factory setting: 6.5L-3.0L, 4.5L-2.0L | |
| Packing: | Brown Box | |
| Water pressure: | 0.03Mpa~1.2Mpa | |
concealed cistern mounting frame details show
Cistern
• HDPE material
• One-piece blow moulded
Covered by foam, the surface of the concealed cistern is prevented from condensation
Push Button Panel
• Various options of designs & colours
• Mechanical, pneumatic, and electronic functions available
Application
- For drywall or solid wall installation
- For the wall-hung toilet, a faster distance of 180/230mm
- For a floor construction of 0~120mm
- For front actuation
Concealed cistern mounting frames have become increasingly popular in modern bathroom design, and their popularity shows no signs of abating anytime soon. This innovative solution for hiding bathroom plumbing not only frees up valuable floor space but also brings an elegant and seamless finish to the bathroom design.
But what is a concealed cistern mounting frame? As the name suggests, it is a frame that mounts a concealed toilet cistern, providing a neat and functional solution for hiding unsightly pipes and water tanks. These frames can be made from a variety of materials, including steel, plastic, and aluminum, and come in different forms to suit different toilet types and installation situations.
In terms of design, these cistern frames are typically slim, minimalistic, and adaptable, designed to fit snugly inside bathroom walls, making them virtually invisible. One of their major benefits is that they give bathroom designers more freedom to create a clean and clutter-free look for the modern bathroom. This is because the cistern is concealed within the wall, reducing the need for visible pipes, and creating a sleek and uncluttered finish that is increasingly popular in today's modern and stylish bathrooms.
Concealed cistern mounting frames are the perfect solution for those looking to create a minimalist and elegant bathroom design. They can be used in both commercial and residential settings and offer a perfect balance of form and function. They also come with unique features and benefits that make them an excellent choice for modern bathrooms.
One of these benefits is flexibility. Concealed cistern mounting frames are very flexible, meaning they can be adjusted to different toilet sizes, heights, and positions. This makes them an ideal choice for different bathroom designs and ensures that they can be used in any setting with ease.
In addition to their flexibility, they are also durable and long-lasting. Made from high-quality materials and designed to resist wear and tear, concealed cistern mounting frames offer excellent value for money. Their durability also means that they require less maintenance, which is always a good thing.
Another significant advantage of a concealed cistern mounting frame is that it reduces the amount of visible pipework in the bathroom. This is particularly beneficial in small and compact bathrooms where space is at a premium. By hiding the cistern, concealed cistern mounting frames help to create a seamless finish that maximizes floor space and creates the illusion of a larger bathroom.
Concealed cistern mounting frames also come equipped with a range of features that make them easy to install and use. For example, many of these frames come with adjustable brackets that allow them to be fitted to walls of different thicknesses. They also come with concealed adjustable feet for added stability and to prevent the frame from moving when in use.
Furthermore, concealed cistern mounting frames also come with different flushing options, including single and dual flushing systems. These options allow users to choose the best flushing option based on their preferences while also helping to conserve water and reduce the environmental impact of the bathroom.
In conclusion, a concealed cistern mounting frame is an excellent choice for anyone looking to create a minimalist and seamless finish in their bathroom. With their flexibility, durability, and range of features, these frames offer excellent value for money and can be used in any setting. They also give bathroom designers more creative freedom to create a clean and uncluttered look that is popular in modern bathrooms. So, if you're looking for a way to add a touch of elegance and sophistication to your bathroom, a concealed cistern mounting frame is the way to go.
