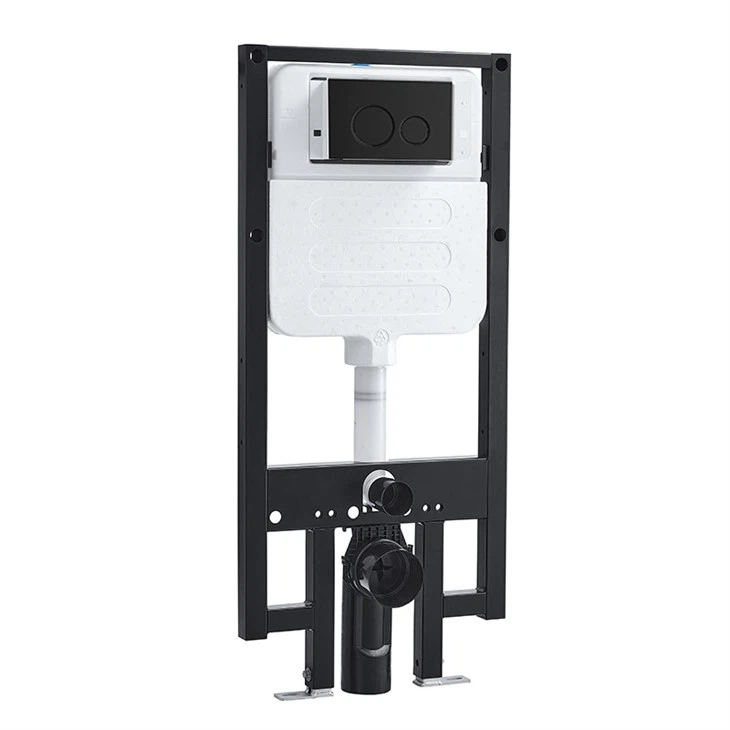

Concealed Cistern With Black Flush Plate
A concealed toilet cistern frame is an innovative and modern way of installing a toilet in a bathroom.
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
The concealed cistern is hidden behind the wall, making it an ideal solution for small bathrooms or en-suites where space is limited. The black flush plate adds to the minimalist design, making it a stylish addition to any bathroom. The cistern is usually accompanied by a dual-flush system, allowing the user to select a partial or full flush, depending on the type of waste being disposed of. The concealed cistern is fitted with internal mechanisms that allow the tank to refill with water quickly, enabling the user to flush again, if necessary, without waiting too long.

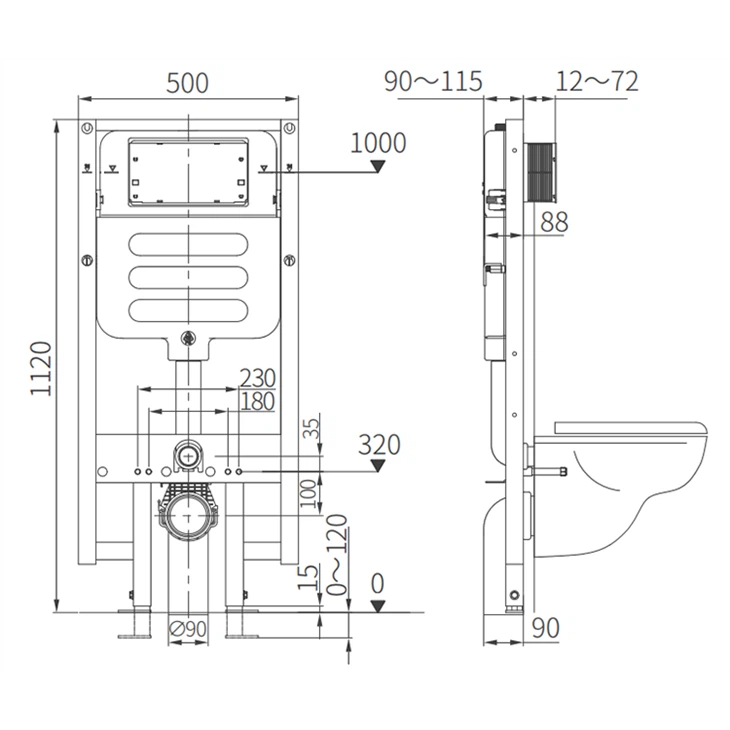

Specifications
| Item NO.: | BW336-F03 | |
| Size: | Height 1120mm; Thickness of cistern 88mm | |
| Application: | For the wall-hung toilet, a faster distance of 180/230mm | |
| Adjustable Dual Flush Valve: | Factory setting: 6.5L-3.0L, 4.5L-2.0L | |
| Packing: | Brown Box | |
| Water pressure: | 0.03Mpa~1.2Mpa | |
concealed cistern with black flush plate details show
Cistern
• HDPE material
• One-piece blow moulded
Covered by foam, the surface of the concealed cistern is prevented from condensation
Push Button Panel
• Various options of designs & colours
• Mechanical, pneumatic, and electronic functions available
Application
- For drywall or solid wall installation
- For the wall-hung toilet, a faster distance of 180/230mm
- For a floor construction of 0~120mm
- For front actuation
Benefits
One of the primary benefits of a concealed cistern with a black flush plate is the space-saving feature. The cistern is hidden behind the wall, freeing up valuable floor space and allowing for a clear, unobstructed view in the bathroom. The black flush plate adds a touch of elegance and refinement, making it a popular choice for homeowners and decorators alike. The dual-flush system also reduces water consumption, making it an environmentally friendly choice that can save you money on your water bills.
Installation
Installing a concealed cistern with a black flush plate requires a bit of plumbing knowledge, but it is a straightforward job that can be completed by a competent DIY enthusiast. The first step is to locate the studs in the wall where the cistern will be mounted. Once the studs have been located, the installer must cut a hole in the wall to fit the cistern into the space. The cistern can then be attached to the studs using brackets or supports. The black flush plate is usually fitted onto a rectangular cover plate, which is screwed into place over the cistern. Once the cistern and flush plate are securely installed, the plumber can connect the water supply and waste pipes to the toilet bowl.
Conclusion
A concealed cistern with a black flush plate is a modern and sophisticated option for a toilet system. The concealed cistern saves space and keeps the toilet looking neat and tidy, while the black flush plate adds a touch of elegance and style to the bathroom. The dual-flush system is environmentally friendly and can save you money on your water bills in the long run. While the installation process requires some plumbing knowledge, it is a relatively simple job that can be completed by a competent DIY enthusiast. Ultimately, a concealed cistern with a black flush plate is a smart and stylish choice for any modern bathroom.
