Concealed Toilet Frame
Compatible with push panels from different suppliers on the market
For wall-hung toilet
Flushing speed adjustable, good for tornado toilet pans to avoid water splashing
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

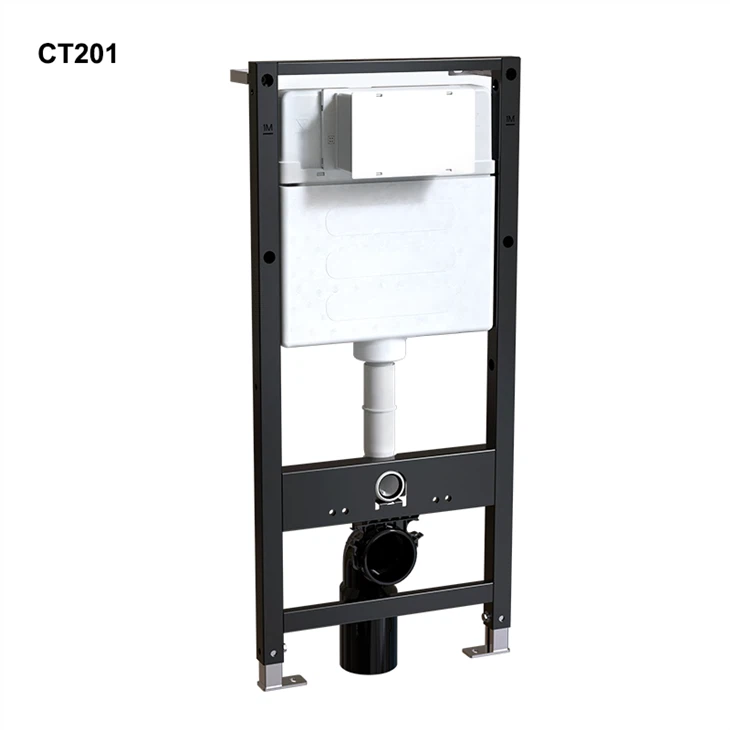

Concealed Toilet Frame CT201 | Steel Frame + HDPE Tank | 400 kg Load | CE/SASO/Watermark
An in-wall frame and cistern set combining a black powder-coated steel structure with a high-strength HDPE tank. Sized at 1120 × 500 mm and rated to 400 kg, CT201 delivers project-grade reliability, adjustable flushing for tornado bowls, and broad compatibility with mechanical and pneumatic push panels from multiple suppliers.
Built for Projects, Ready for OEM
- Steel + HDPE: Rigid steel frame (black) paired with a corrosion-resistant HDPE cistern.
- Anti-Splash Tuning: Adjustable flush speed for tornado bowls to minimize spray and noise.
- Cross-Brand Plates: Works with a wide range of push panels (mechanical & pneumatic).
- Certified for Export: CE, SASO, Watermark conformed for global markets.
- B2B Focus: Stable production, OEM label/packaging, and engineering drawings on request.
Images are for reference. Final appearance may vary by panel selection and regional kit.
Technical Specifications
| Model | CT201 |
|---|---|
| Overall Size | Height 1120 mm × Width 500 mm |
| Frame Material | Steel, black powder-coated |
| Cistern Material | HDPE (high-density polyethylene) |
| Max Load Rating | 400 kg (proper wall/anchor installation required) |
| Flushing | Adjustable speed; optimized for tornado bowls to reduce splash |
| Push Panels | Mechanical or pneumatic; multiple designs/materials |
| Compatibility | Plates from different suppliers across the market |
| Certifications | CE, SASO, Watermark |
Detailed installation manual, and compliance documents are available after inquiry.
Advantages for B2B Buyers
Project Reliability
Rigid frame and 400 kg rating ensure stability in high-use environments such as hotels and public facilities.
Flexible Aesthetics
Select push plates by design, material, or mechanism without changing the in-wall system.
Lower Lifecycle Cost
Anti-splash tuning reduces cleaning and moisture issues, cutting maintenance time and cost.
OEM/ODM Ready
Support for private label, packaging artwork, and market-specific accessory kits.
Installation & Compatibility
CT201 fits stud walls or solid masonry. The adjustable flush is valuable when pairing with tornado-style bowls, helping limit splash and echo while maintaining effective evacuation. Mechanical and pneumatic plates with single/dual-flush logic can be used interchangeably, depending on your market's preference and water-saving targets.
- Top/bottom water inlet variants available upon request.
- Anchor kits and brackets included per region; check BOM before ordering.
- Clear service access via push-panel window for maintenance.
Recommended Applications
- Residential developments and refurbishments
- Hospitality: hotels, resorts, serviced apartments
- Commercial offices and mixed-use buildings
- Healthcare and education projects
- Public restroom upgrades seeking minimalist aesthetics
FAQ
Can I mix brands of push plates?
Yes. The system is designed for cross-brand compatibility; confirm dimensions and actuation type (mechanical/pneumatic) before purchase.
How do I tune the flush for a tornado bowl?
Use the adjustable valve settings outlined in the manual to balance flow rate and duration, minimizing splash while maintaining rinse performance.
What testing or certifications are available?
CT201 conforms to CE, SASO, and Watermark. Certification packs and lab reports can be provided for tenders.
What about supply capacity and lead time?
Standard lead time is 30–45 days after PO/artwork approval, with stable monthly output for roll-out projects. Contact us for current capacity.
Request a Quote / Samples
Share your project specs (volume, panel type, destination port). We'll return a tailored quote, container loading plan, and sample arrangement.
Typical response within 24 hours (working days).
