wall hung toilet with concealed cistern

The system is an in-wall installation solution designed for modern wall-hung toilet applications. It integrates a reinforced steel support frame, HDPE water tank, and adjustable flushing system into a structure that is fully embedded inside the wall after installation.

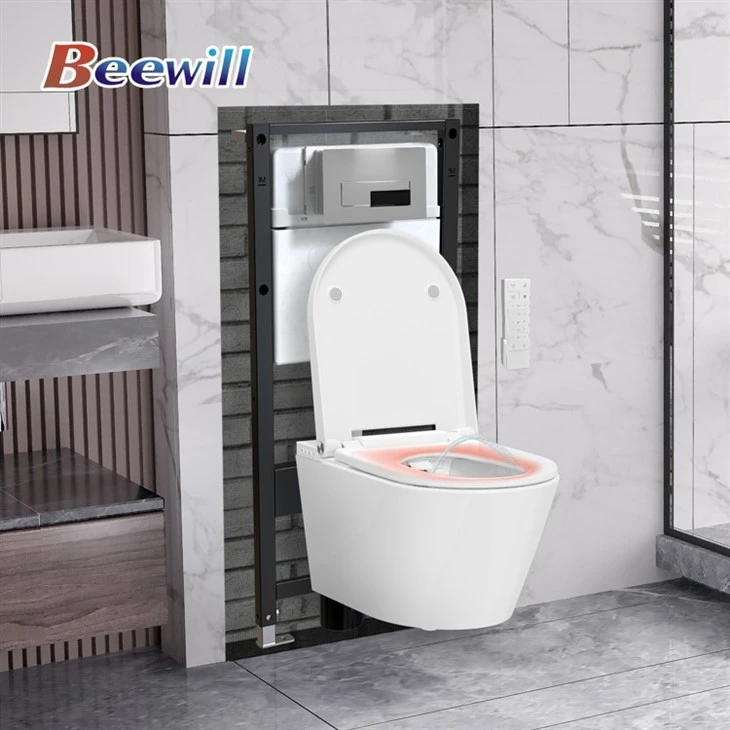

Once installed, only the flush actuator panel remains visible, creating a clean architectural bathroom appearance. This system is widely used in residential buildings, hotel projects, and commercial bathroom developments where space optimization and modern aesthetics are required.

CT201 System Key Performance Features

• 400 kg structural load capacity for wall-hung toilet support
• Adjustable flushing speed optimized for vortex flushing toilets
• Compatible with mechanical and pneumatic flush panels
• HDPE high-strength water tank for long service life
• Designed for pre-wall installation systems (drywall or masonry)
• Suitable for renovation and new construction projects
•

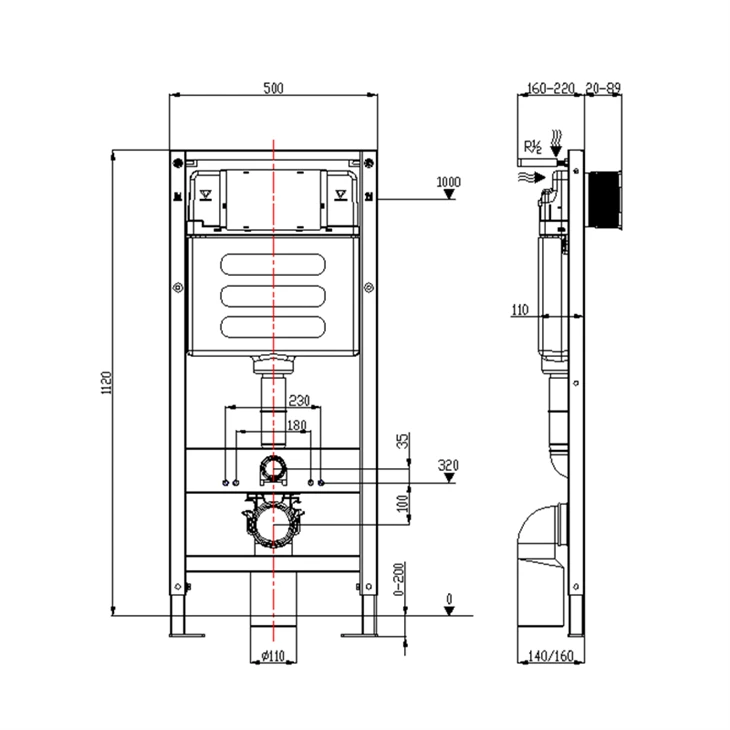

Technical Specifications

Installation Concept

The CT201 must be installed inside a pre-wall structure before finishing the bathroom wall surface. The steel frame is anchored to the building structure, while the cistern tank is fully enclosed inside the wall cavity.

After tiling or wall finishing, only the flush panel remains accessible for operation and maintenance access.

Application Scenarios

• Modern residential bathroom renovation
• Luxury apartment and condominium projects
• Hotel and hospitality bathroom systems
• Commercial building washroom installations
• Architectural minimalist bathroom design projects

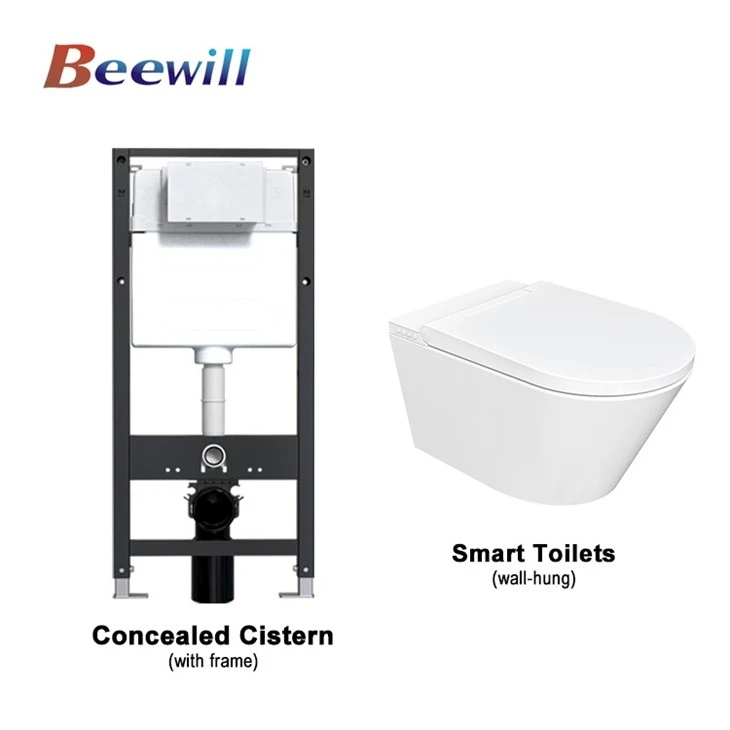

Optional Matching Product – Wall Hung Smart Toilet

The concealed cistern can be integrated with a wall-hung smart toilet system for advanced hygiene performance and modern bathroom functionality.

• D-shape ergonomic ceramic toilet design
• Rear wash and front wash functions
• Warm air drying system
• Heated seat with temperature control
• Remote control operation system
• Automatic descaling function
• Night lighting mode
• OEM customization available (logo / panel / packaging)
•

OEM & Project Supply Support

We provide OEM and project-based supply solutions for distributors, sanitary ware brands, and construction contractors. Customization options include logo engraving, flush panel design, and packaging configuration.

• OEM / ODM manufacturing support
• Bulk container shipment supply
• Project technical specification support
• Private label customization

FAQ

Is the cistern installed inside the wall?

Yes. The CT201 is a fully in-wall system that is installed inside a pre-wall or masonry structure. After installation, only the flush plate is visible.

What type of installation is required?

The system requires a pre-wall installation structure (drywall or solid wall enclosure) to support the embedded frame and cistern tank.

Can it be used for renovation projects?

Yes. It is suitable for renovation projects as long as a pre-wall structure can be created to accommodate the concealed system.

Is maintenance possible after installation?

Yes. Maintenance can be performed through the flush panel opening without damaging the wall structure.

What toilets are compatible with CT201?

The system is compatible with most standard wall-hung toilet bowls that follow international installation spacing standards.

What is the load capacity of the frame?

The steel frame is tested to support up to 400 kg, ensuring safe installation for residential and commercial use.

Does it support pneumatic flush systems?

Yes. The CT201 supports both pneumatic and mechanical flush activation systems.

Is it suitable for hotel projects?

Yes. It is widely used in hotel and commercial bathroom projects due to its durability, hidden structure, and modern design compatibility.
